ASME B16.11 SOCKET WELD FITTINGS MANUFACTURERS IN INDIA

Atlanta Alloys Recognize As A Trusted Manufacturers, Suppliers, & Exporters Of Stainless Steel Socket Weld Pipe Fittings – Asme 16.11 In All Dimensions And Sizes.

Socket Weld Is A Pipe Attachment Detail In Which A Pipe Is Inserted Into A Recessed Area Of A Valve, Fitting Or Flange. In Contrast To Buttweld Fittings, Socket Weld Fittings Are Mainly Used For Small Pipe Diameters (Small Bore Piping); Generally For Piping Whose Nominal Diameter Is Nps 2 Or Smaller.

To Join Pipe To Valves And Fittings Or To Other Sections Of Pipe, Fillet-Type Seal Welds Be Used. Socket Welded Joints Construction Is A Good Choice Wherever The Benefits Of High Leakage Integrity And Great Structural Strength Are Important Design Considerations.

Fatigue Resistance Is Lower Than That In Butt-Welded Construction Due To The Use Of Fillet Welds And Abrupt Fitting Geometry, But It Is Still Better Than That Of Most Mechanical Joining Methods.

SOME DETAILS OF SOCKET WELD FITTINGS

Sw Fittings Are Family Of High Pressure Fittings Are Used In Various Industrial Processes.

•  They Are Used For Lines Conveying Flammable, Toxic Or Expensive Material Where No Leakage Can Be Permitted, And For Steam 300 To 600 Psi.
•  They Are Used Only In Conjunction With Asme Pipe And Are Available In The Same Size Range.
•  They Are Used In Areas Where Pipe-Work Is Permanent And Are Designed To Provide Good Flow Characteristics.
•  They Are Are Produced To Several Astm Standards And Are Manufactured In Accordance With Asme B16.11. The B16.11 Standard Covers Pressure-Temperature Ratings, Dimensions, Tolerances, Marking, And Material Requirements For Forged Carbon And Alloy Steel. Acceptable Material Forms Are Forgings, Bars, Seamless Pipe, And Seamless Tubes Which Conform To The Fittings Chemical Requirements, Melting Practices, And Mechanical Property Requirements Of Astm A105, A182, Or A350.
•  They Are Available In Three Pressure Ratings: Class 3000, 6000 And 9000.

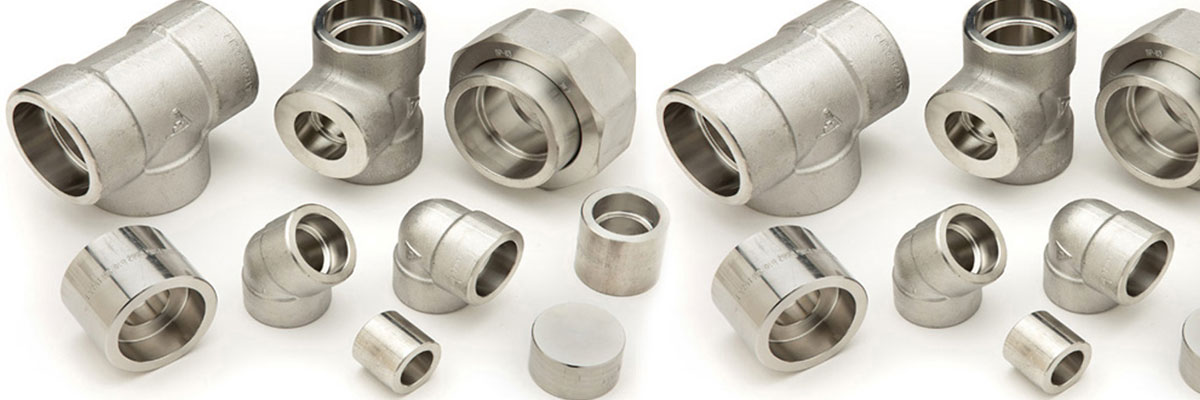

FORGED SOCKET WELD STAINLESS STEEL FITTINGS

•  Stainless Steel – Astm A182 F304, F304l, F306, F316l, F304h, F309s, F309h, F310s, F310h, F316ti, F316h, F316ln, F317, F317l, F321, F321h, F11, F22, F91, F347, F347h, F904l, Astm A312/A403 Tp304, Tp304l, Tp316, Tp316l

Forged Socket Weld Carbon Steel Fittings

•  Carbon Steel Astm A105, A350 Lf2, A106 Gr.B, A234 Wpb
•  The Material For Forged Carbon Steel Fittings Conforms To The Requirements Of Astm/Asme A105/Sa105 The Dimensions For Forged Carbon Steel Fittings Conform To Asme B16.11

SOCKET-WELD ELBOWS

SOCKET-WELD TEE

SOCKET-WELD REDUCER

SOCKET-WELD UNION

SOCKET-WELD CROSS & TEE

SOCKET-WELD END CAPS

SOCKET-WELD COUPLINGS

MARKING & PACKING

Products Are Packaged To Ensure That There Is No Damage During Transit. In Case Of Exports, Standard Export Packaging Is Done In Wooden Cases. All Forged Fittings Are Marked With Grade, Lot No, Size, Degree And Our Trade Mark.

The materials we use are:
